The backhoe loader BLT388-III combines durability, efficiency, and comfort. Its JCB-style boom and load-sensing hydraulics ensure smooth, precise digging, while the one-piece frame and high-precision pins provide superior rigidity and long service life. A deluxe cabin with openable glass panels enhances ventilation, visibility, and operator productivity.
नमूना :
BLT388H-IIIबाल्टी क्षमता :
0.3m³/1.2m³ओडीएम / OEM :
Support

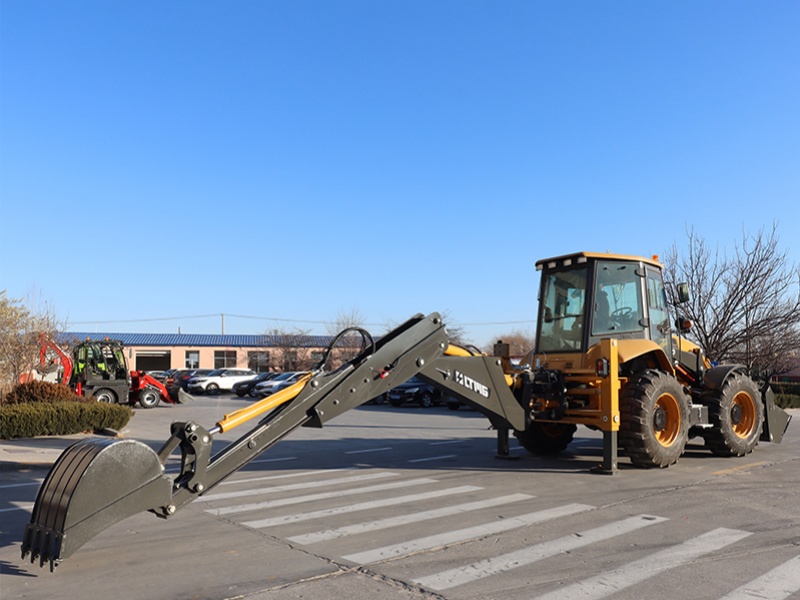

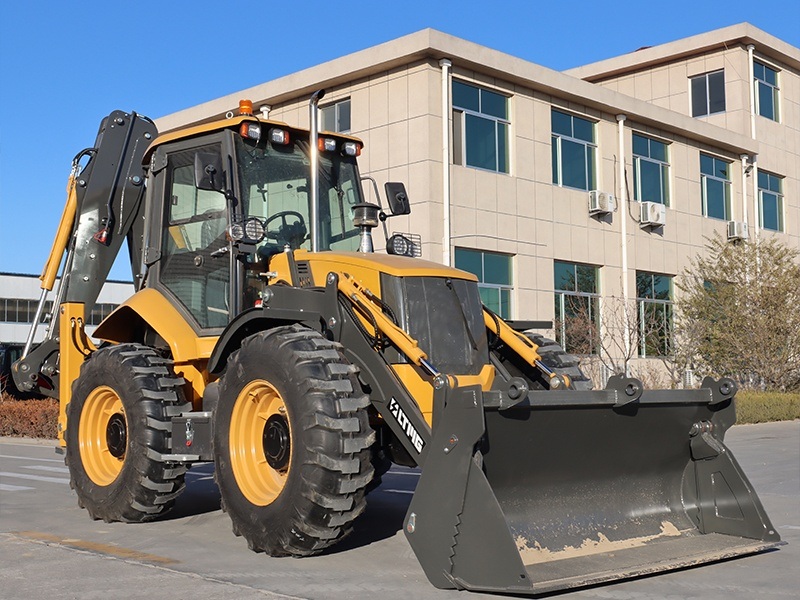

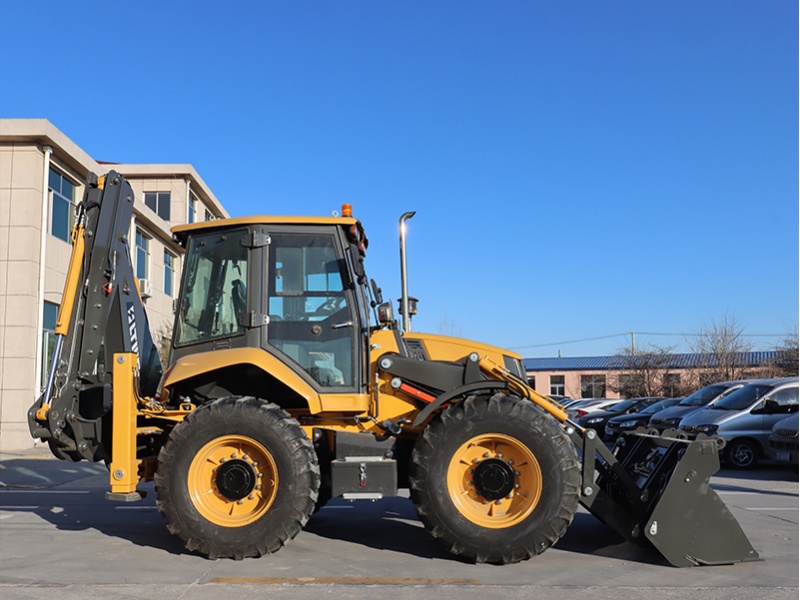

Backhoe Loader BLT388-III
* The JCB-style backhoe boom enables smooth and flexible four-link compound movements, greatly reducing digging time and improving overall work efficiency.
* The deluxe cabin features three openable glass panels for better ventilation and a wider field of view, significantly enhancing comfort and operational efficiency.
* The integrated one-piece frame offers higher rigidity than traditional multi-piece structures, effectively preventing deformation and breakage. It distributes loads evenly, absorbs impact well, and provides excellent resistance to bending and twisting.
* After-welding machining ensures extremely high pin-hole accuracy. The pins fit tightly with each component, eliminating impact during operation, increasing load strength, and extending service life.
* The load-sensing valve delivers flow on demand, avoiding unnecessary losses while providing fast response and precise hydraulic control.
BLT388H-III Backhoe Loader Technical Parameters
| Item | Specification |
| Model | BLT388H-III |
| Overall Dimension (L*W*H) | 6500*2500*3800mm |
| Wheel Base | 2250mm |
| Min. Ground Clearance | 400mm |
| Min. Turning Radius | 4200mm |
| Operating Weight | 9200/9600 |
| Max.Speed | 38Km/h |
| Max. Climbing Capacity | 35° |
| Max. Digging Depth | 4000/5300mm |
| Max. Digging Radius | 5700/6500mm |
| Max. Lifting Height | 5800/6300 |
| Backhoe Capacity | 0.3m³ |
| Max. Dumping Height | 2800mm |
| Max. Dumping Distance | 800mm |
| Bucket Capacity | 1.2m³ |
| Engine Model | Yuchai 4108 |
| Rated Power | 75KW |
| Rated Speed | 2200r/min |
| Cylinders-Inside Diameter | 4-108 |
| Gear Shift | 4F/4R |
| Tire Size | 16.9-28-14 |
| Drive Type | Four-wheel Drive |
| Transmission Type | Hydrodynamic Transmission |
| Operating System | Electrically Proportional Pilot Control |
With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail.

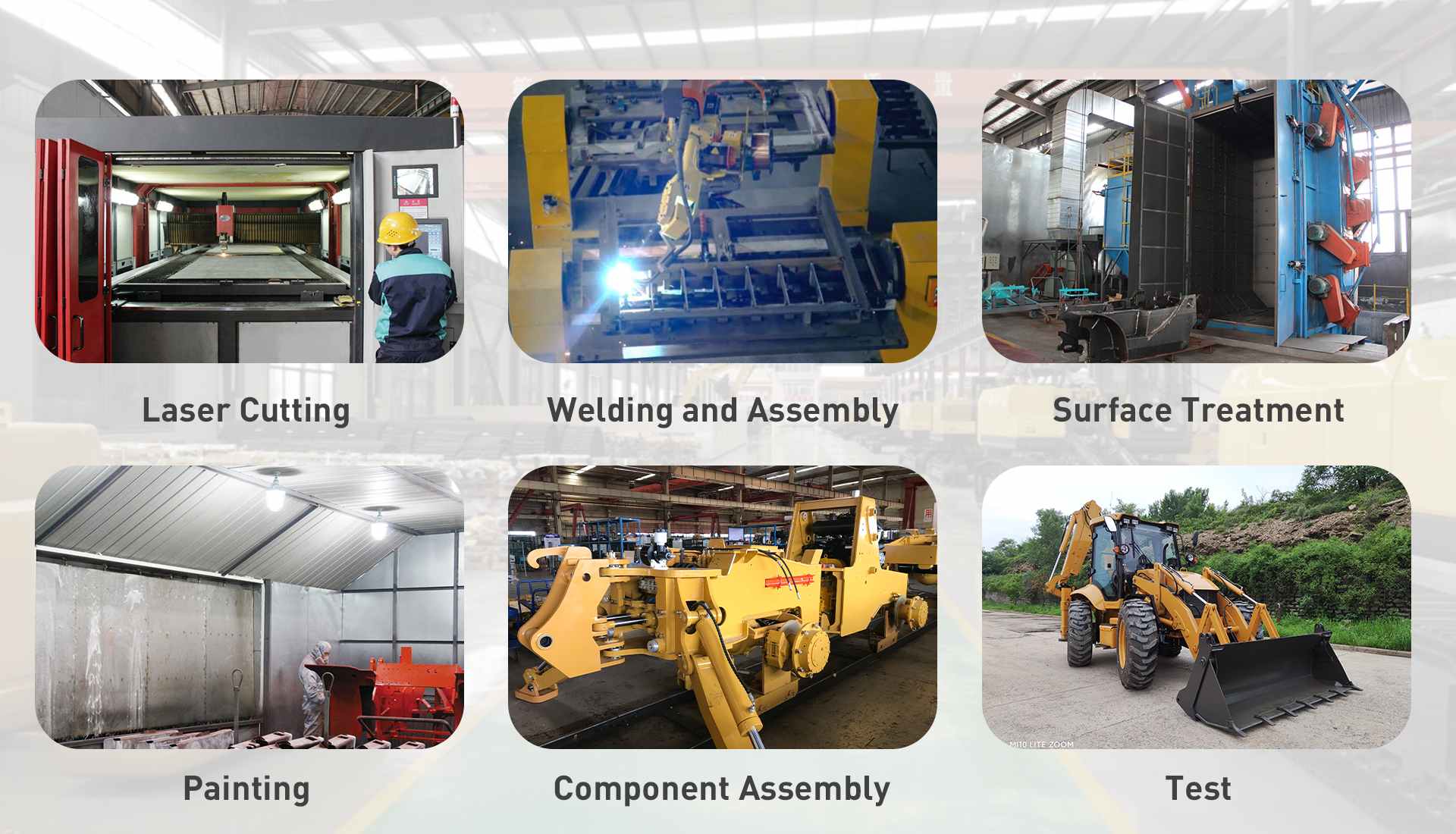

Robust Factory Production for Quality Equipment

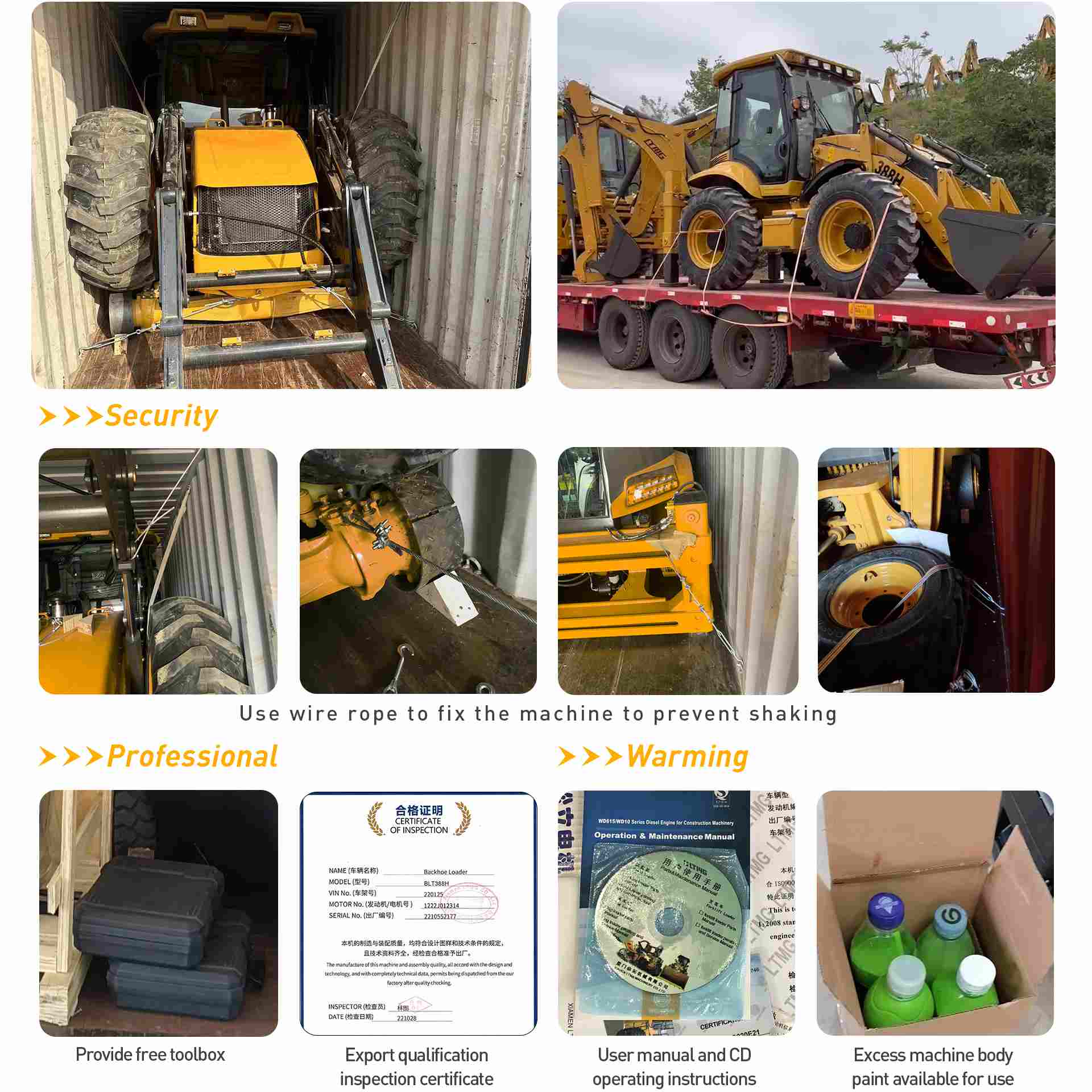

Professional Logistics Assurance for BLT388H-III Backhoe Loader

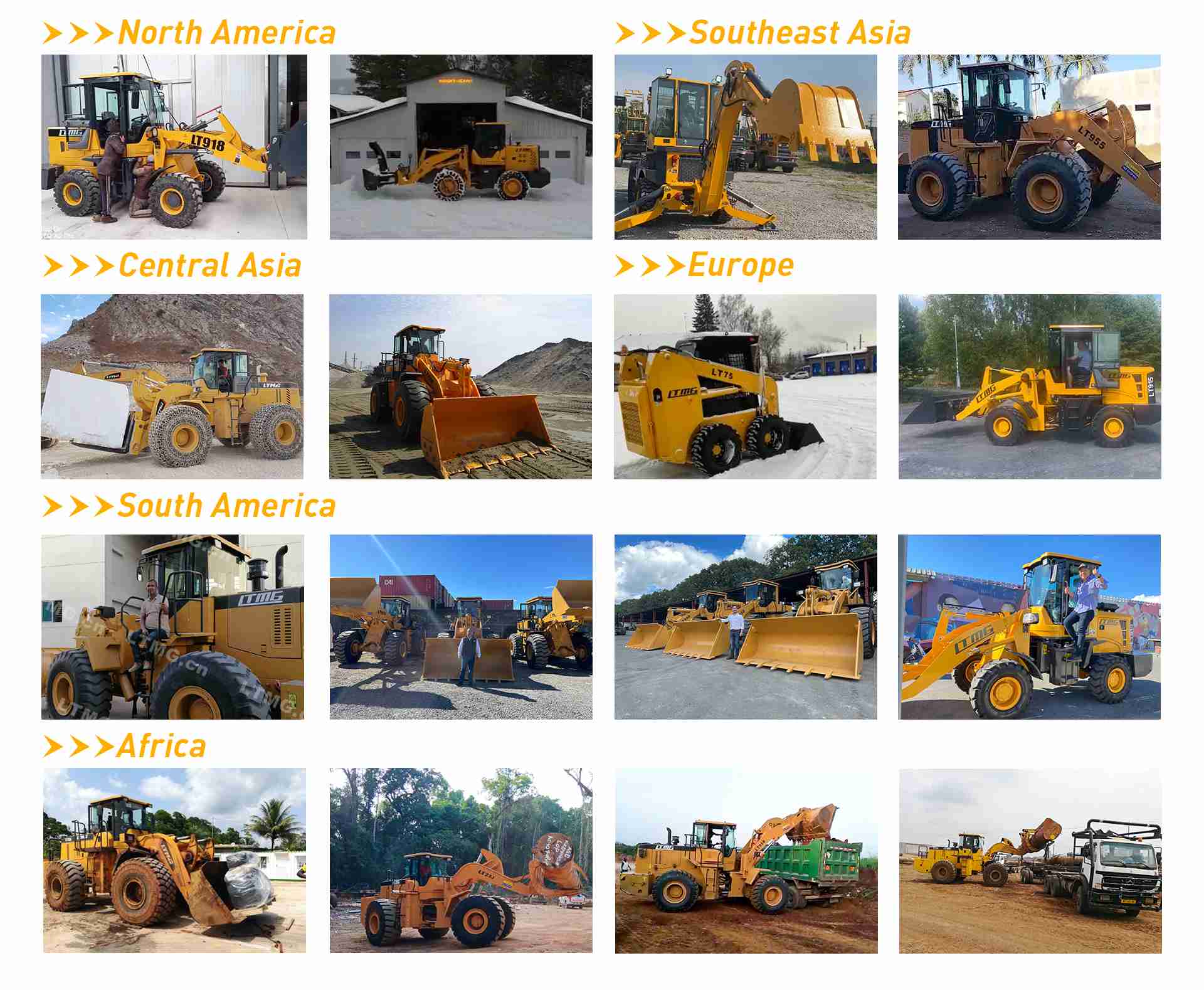

Real Customer Reviews from Backhoe Loader Owners
