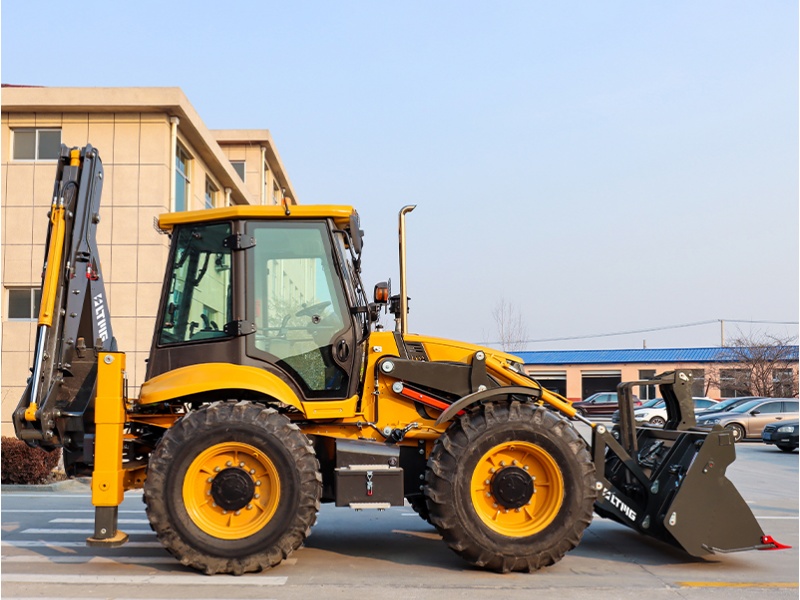

Backhoe Loader with Telescopic Boom and Side Shift
Backhoe Loader with Telescopic Boom and Side Shift
Backhoe Loader with Telescopic Boom and Side Shift
Backhoe Loader with Telescopic Boom and Side Shift
Backhoe Loader with Telescopic Boom and Side Shift

Backhoe Loader with Telescopic Boom and Side Shift

BLT388H-I, the backhoe loader, features a one-piece integrated frame for superior rigidity, load distribution, and impact absorption. Its precision side-shift slide rails ensure smooth, low-noise operation with long service life. At the same time, the telescopic boom offers adjustable reach and digging depth for greater efficiency on varied job sites. High-precision pins provide tight, impact-free operation and enhanced durability across the entire machine.

  • नमूना :

    BLT388H-I
  • बाल्टी क्षमता :

    0.3m³/1.2m³
  • ओडीएम / OEM :

    Support
  • साझा :
  • Youtube
  • Facebook
  • Instagram
  • linkedin
  • twitter

front end wheel loader

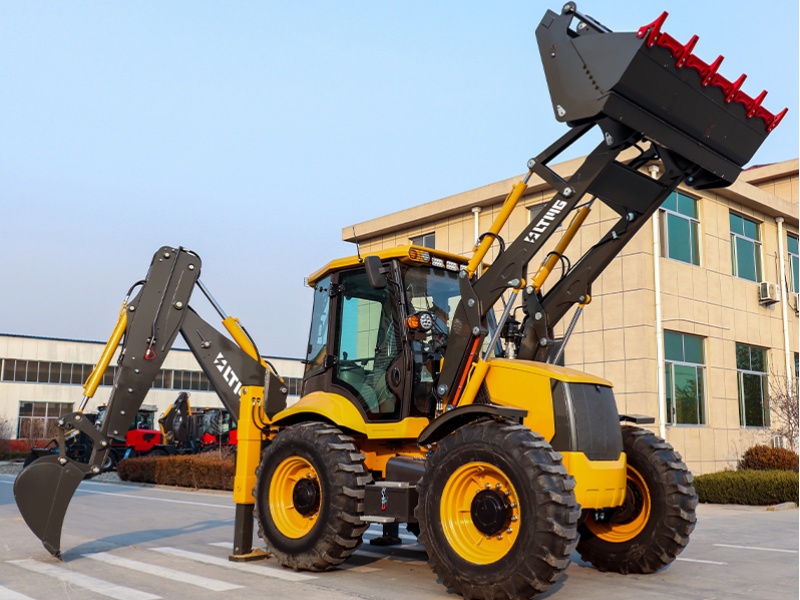

BLT388H-I Backhoe Loader with Telescopic Boom and Side Shift

  • The one-piece integrated frame delivers greater rigidity, effectively preventing deformation and breakage while evenly distributing loads and efficiently absorbing impact.
  • The backhoe side-shift uses precision slide rails with an integrated forklift-style design, ensuring smooth movement, minimal clearance, longer service life, and lower noise.

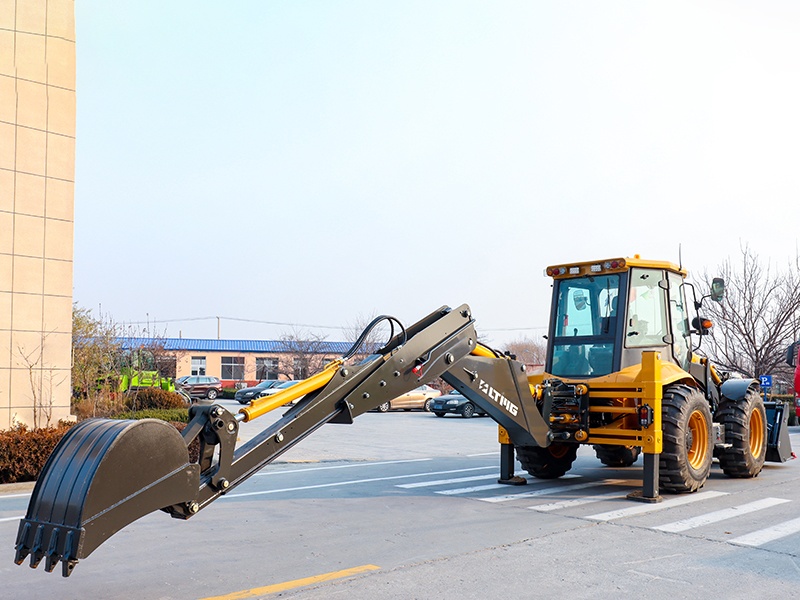

  • The telescopic boom combines strong load capacity with precise structure, allowing easy adjustment of working radius and digging depth for better efficiency and adaptability on various job sites.
  • The high-precision pins fit tightly with each component, eliminating impact during operation, increasing load strength, and extending overall service life.



BLT388H-I Backhoe Loader Technical Parameters

Item Specification
Model BLT388H-I
Overall Dimension (L*W*H) 6500*2500*3800mm
Wheel Base 2250mm
Min. Ground Clearance 400mm
Min. Turning Radius 4200mm
Operating Weight 9200/9600
Max.Speed 38Km/h
Max. Climbing Capacity 35°
Max. Digging Depth 4000/5300mm
Max. Digging Radius 5700/6500mm
Max. Lifting Height 5800/6300
Backhoe Capacity 0.3m³
Max. Digging Radius 900mm
Max. Dumping Height 2800mm
Max. Dumping Distance 800mm
Bucket Capacity 1.2m³
Engine Model Yuchai 4108
Rated Power 75KW
Rated Speed 2200r/min
Cylinders-Inside Diameter 4-108
Gear Shift 4F/4R
Tire Size 16.9-28-14
Drive Type Four-wheel drive
Transmission Type Hydrodynamic transmission
Operating System Electrically Proportional Pilot Control

With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail.

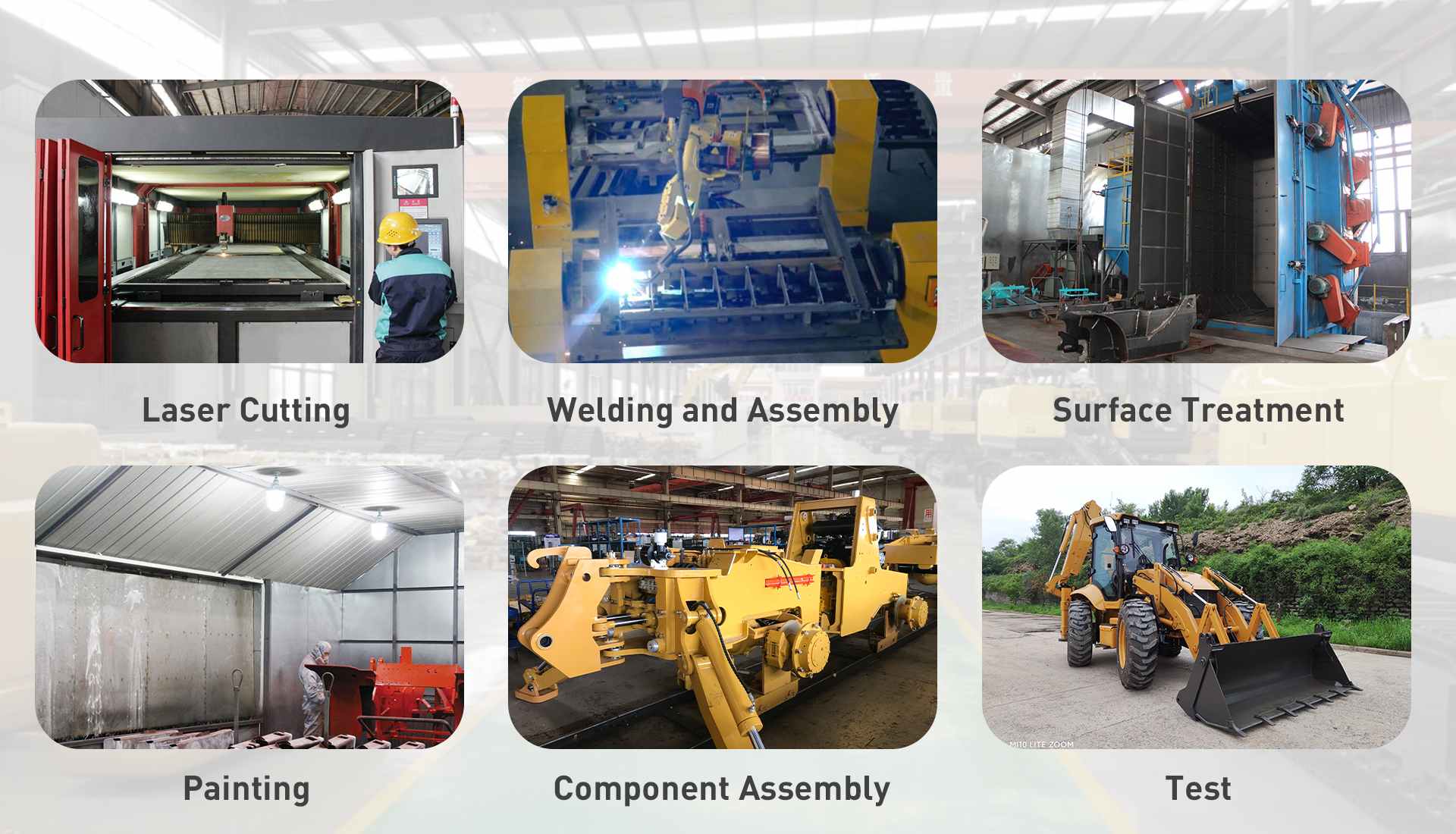

Modern Factory with Full-Scale Manufacturing Capabilities

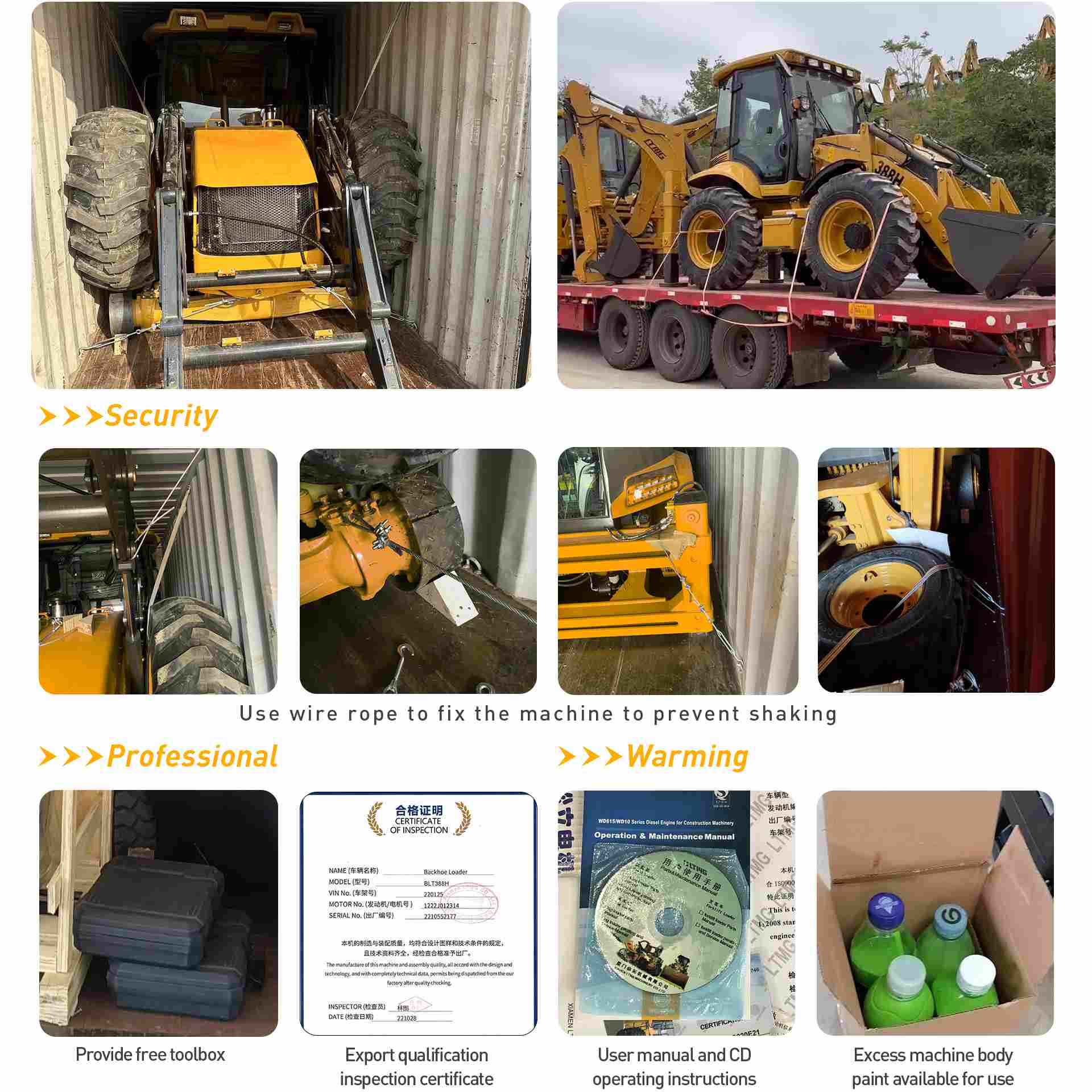

Secure Transportation Guarantee

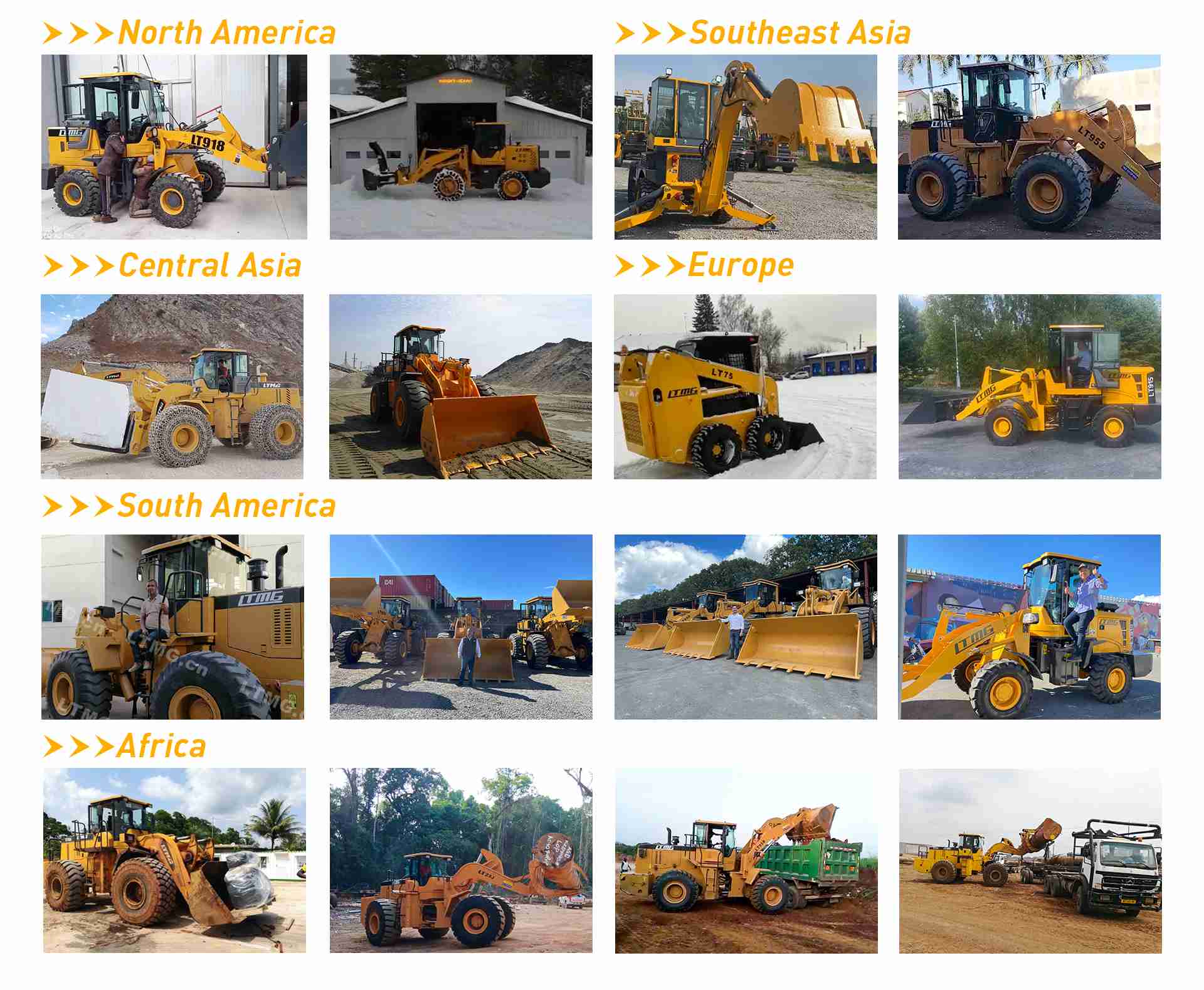

Customer Feedback from BLT388H-I Backhoe Loader

Our backhoe loaders have earned the trust of customers from all around the world. From construction sites to agricultural projects, users consistently praise their strong performance, durability, and adaptability to demanding job conditions. With reliable quality and stable operation, our machines continue to deliver proven results across different regions, making them a preferred choice for global customers seeking dependable solutions.
