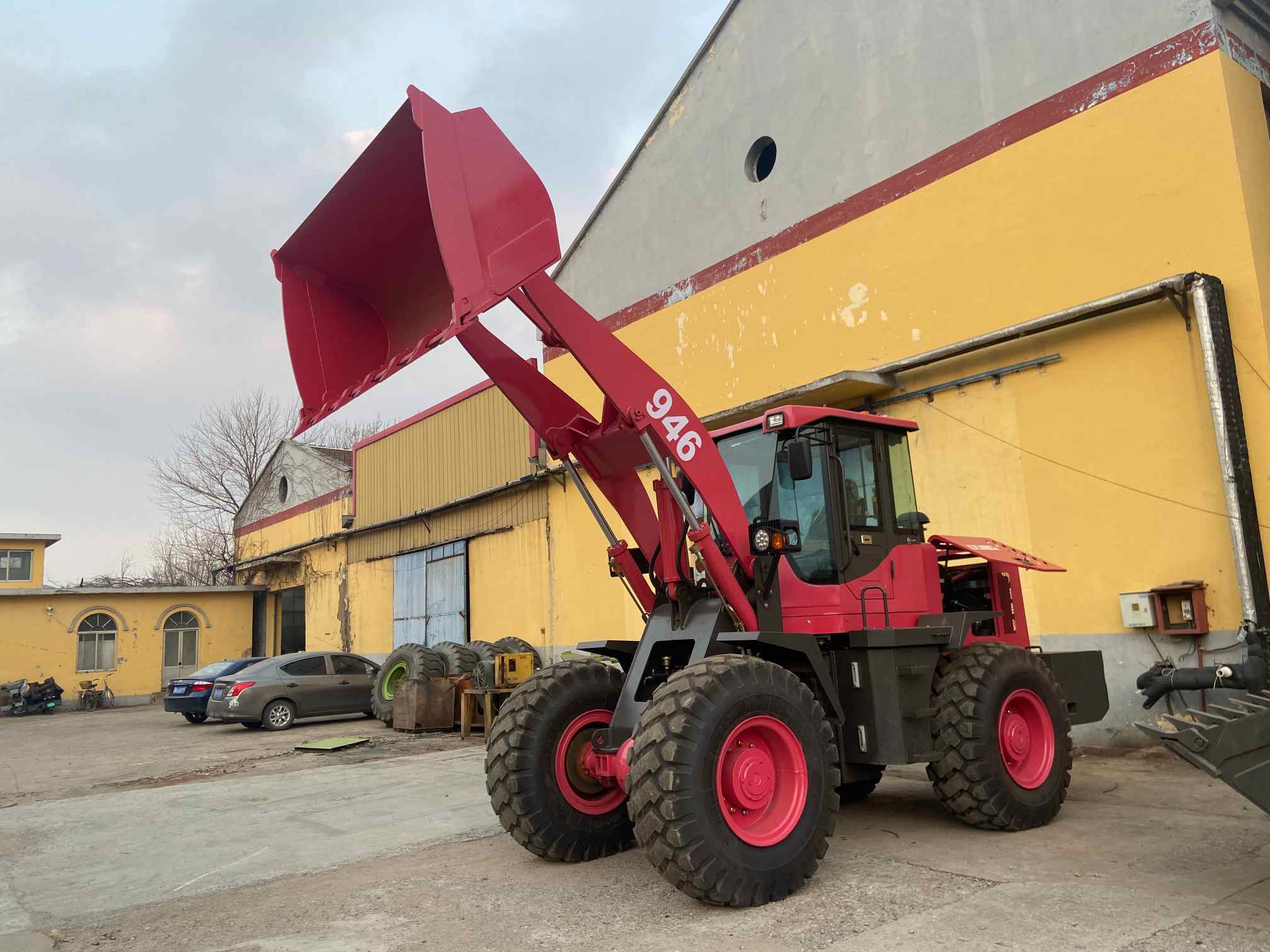

The LT946 4-ton wheel loader delivers flexible maneuverability and smooth, precise control through its articulated frame, full-hydraulic steering, and ergonomic pilot operation. Strong air-over-hydraulic braking, efficient twin-pump flow merging, and durable steel engine covers ensure safer, more reliable performance on demanding job sites.
नमूना :
LT946ऑपरेटिंग वेट :
4000KGबाल्टी क्षमता :
2m³ओडीएम / OEM :
Support
1. Central articulated frame for a small turning radius, flexible mobility, and stable operation in narrow spaces.
2. Clear gauges and ergonomic controls ensure easy, comfortable driving.
3. Air-over-hydraulic four-wheel disc brakes provide strong, stable braking and enhanced safety.
4. Full hydraulic steering and power-shift transmission deliver smooth, reliable operation.
5. Twin-pump flow merging increases power for breakout and lifting, improving overall efficiency.
6. Steel engine side covers offer durability, easy access, and better maintenance convenience.
7. Pilot hydraulic controls make machine operation lighter, smoother, and more comfortable.
| Performance | rated loading | 4000kg |
| overall weight | 11000kg | |
| bucket capacity | 2.0m3 | |
| maximum traction force | 95KN | |
| maximum breakout force | 127KN | |
| maximum grade ability | 30℃ | |
| maximum dump height | 3200mm | |
| maximum dump reach | 1260mm | |
| overall dimension (L×W×H) | 7560*2440*3300mm | |
| minimum turning radius | 5929mm | |
| Digging depth(minimum) | 150 mm | |
| Tipping load | 9860KG | |
| Max angle of steering | 45° | |
| Engine | model | weichai |
| type | ||
| NO. of cylinder-bore*stroke | ||
| rated power | 129kw—2000r/min | |
| maximum torque | 640N.m | |
| min. fuel-consume ratio | ≦210Kw h | |
| Emission standards | Euro Ⅱ | |
| torque converter | YJ315-X | |
| Transmission system | gearbox mode | The power shaft is normally engaged straight gear |
| gears | 2 forward 1 reverse | |
| maximum speed | 38km/h | |
| Drive axles | main reducing spiral | bevel gear grade 1reduction |
| decelerating mode | Planetary reduction grade 1 | |
| Hydraulic system | wheel base (mm) | 2820mm |
| wheel tread | 1300mm | |
| ground clearance | 400mm | |
| system working pressure | 16,5MPa | |
| boom lifting time | 4.83 | |
| total time | 9.15±0.5s | |
| Brake system | service brake | air assist disc brake on 4 wheels |
| parking brake | Manual disk brake | |
| Tyre | type specification | 20.5-25 |
| front tyre pressure | 0.4Mpa | |
| rear tyre pressure | 0.35Mpa |
With technological innovation, our product configuration and parameters will continue to change without notice. If there is any doubt, the specific confirmation of our international trade sales shall prevail.

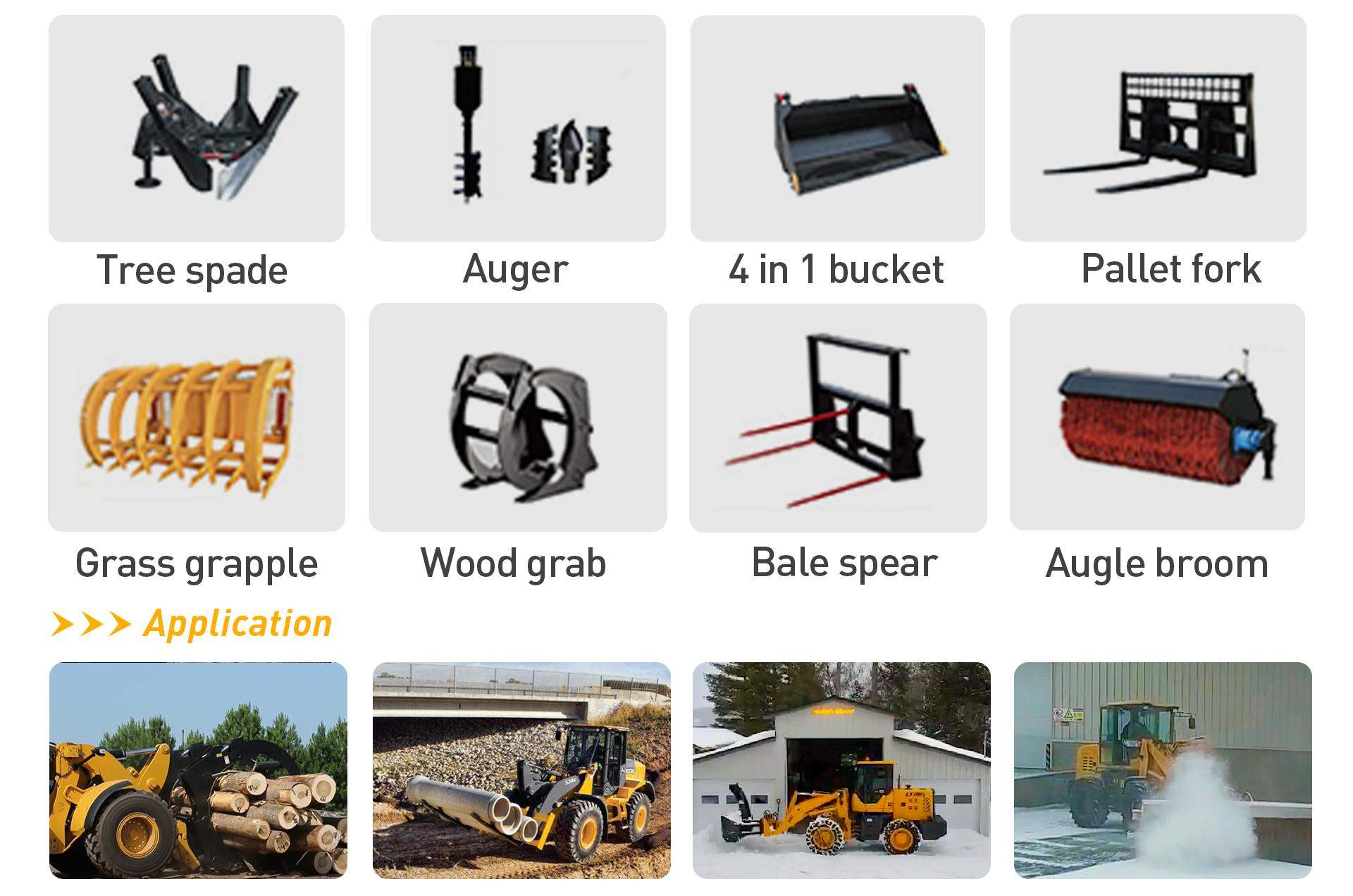

The Attachments for 4 Ton Front End Loader
Wheel loader attachments greatly expand the machine’s versatility, allowing it to handle different materials and job requirements with ease. From general-purpose buckets and pallet forks to log grapples, snow blades, and quick couplers, each attachment is designed to improve efficiency, safety, and productivity on site. By selecting the right attachment, operators can maximize the loader’s performance across construction, agriculture, mining, and material-handling applications.
Guaranteed Safety in Every Shipment

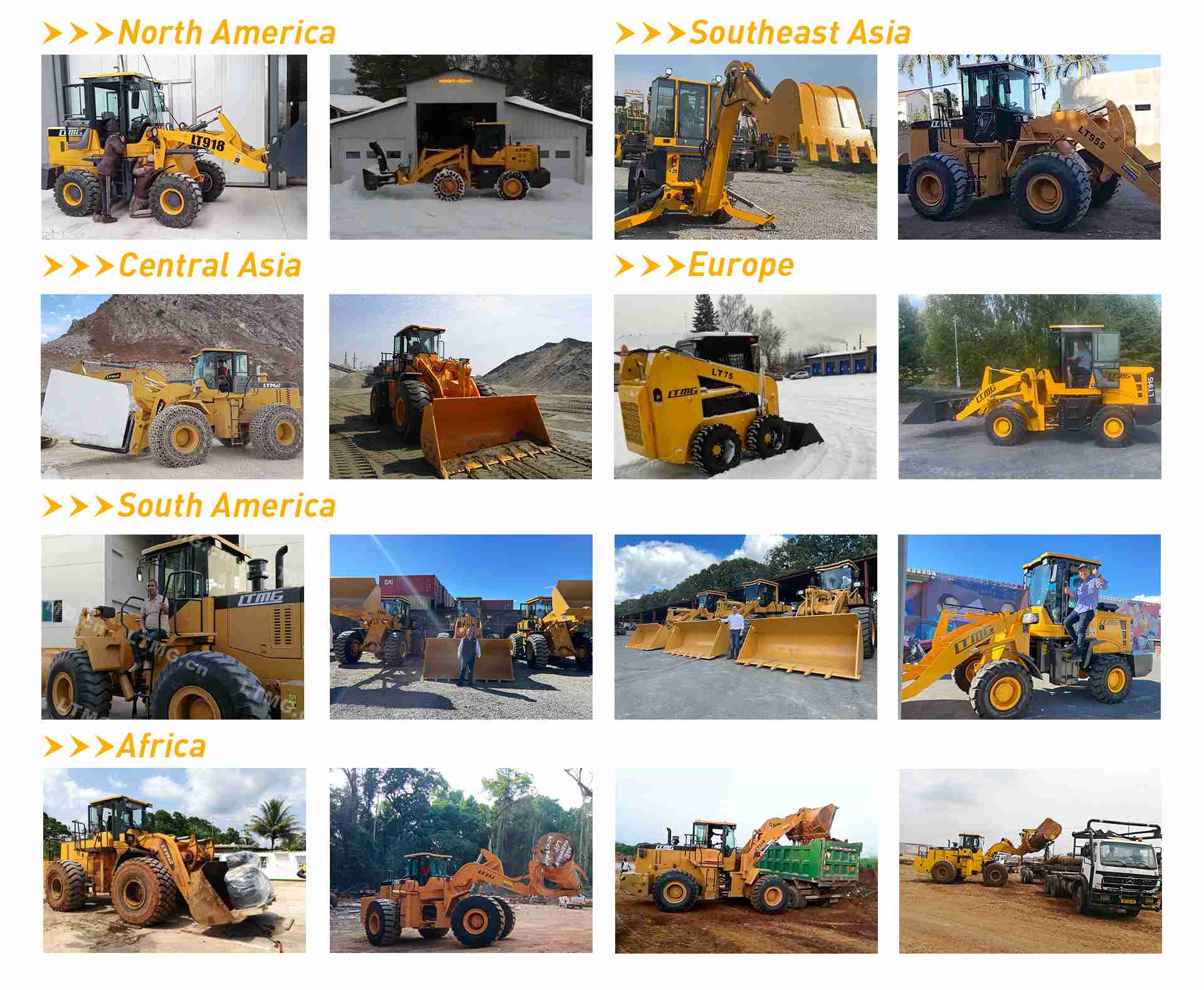

Customer Feedback of 4 Ton Front End Loader
Customers consistently highlight the strong performance, efficiency, and reliability of our 4-ton front-end loader in daily operations. Many praise its smooth hydraulic control, comfortable cabin design, and powerful lifting capability, noting that it delivers excellent value across construction, agriculture, and material-handling projects. Positive feedback also reflects its low maintenance needs and dependable productivity on tough job sites.
Quality and Safety Certifications
