- Compact & Highly Maneuverable
- Low center of gravity and tight turning radius enable this skid steer loader to operate easily in confined spaces, making it ideal for construction, agriculture, and urban job sites.
- Efficient Cooling System
- Optimized heat dissipation prevents engine overheating, reduces wear, and helps extend service life with lower maintenance needs.
- Quick-Change Attachment System
- Supports standard quick couplers for fast switching between attachments like augers, breakers, sweepers, and trenchers—delivering true multi-function performance for any skid steer for sale requirement.
- Enhanced Safety with Rear Camera
- High-definition rearview camera improves rear visibility, reduces blind spots, and increases overall operating safety.

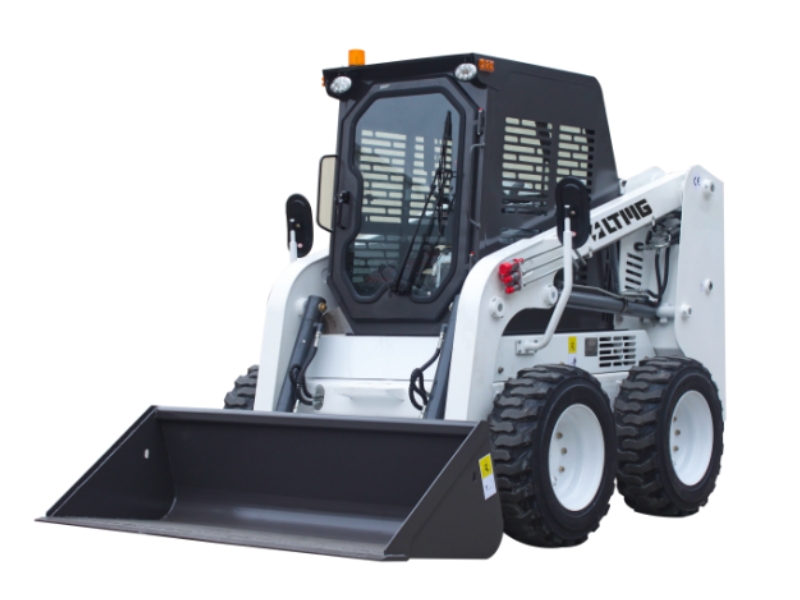

LT60 Skid Steer Loader Technical Specifications
| Model |
LT45 |
|
Engine Model
|
QUANCHAIQC490GP
|
|
Rated Power
|
45KW
|
|
Rated Speed
|
2650rpm
|
|
Max. Speed
|
11.2km/h
|
|
Tire
|
10-16.5
|
|
Operating Load
|
830kg
|
|
Max. Loading
|
1660kg
|
|
Lifting Type
|
Radial
|
|
Total Cycling Time
|
10.2s
|
|
Bucket Capacity
|
0.47m³
|
|
Pressure of Working System
|
180bar
|
|
Rated Flux
|
80L/min
|
|
Fuel Tank Capacity
|
81L
|
|
Self-weight With Bucket
|
2980kg
|
|
Control Bucket
|
Joysticke
|
|
Overall Operating Height
|
3897mm
|
|
Height To Bucket Hinge Pin
|
2982mm
|
|
Height To Top of Cab
|
2090mm
|
|
Height To Bottom of Level Bucket
|
2855mm
|
|
Overall Length Without Bucket
|
2536mm
|
|
Overall Length With Bucket
|
3352mm
|
|
Dumping Height
|
2266mm
|
|
Dumping Reach
|
662mm
|
|
Rollback of Bucket On Ground
|
25
|
|
Ground Clearance
|
210mm
|
|
Angle of Departure
|
30
|
|
Front Turning Radius without Bucket
|
1252mm
|
|
Front Turning Radius
|
2052mm
|
|
Rear Turning Radius
|
1516mm
|
|
Width (Standard Tire)
|
1730mm
|
|
Bucket Width
|
1800mm
|
With technological innovation our product configuration and parameters will continue to change without notice.
About LTMG

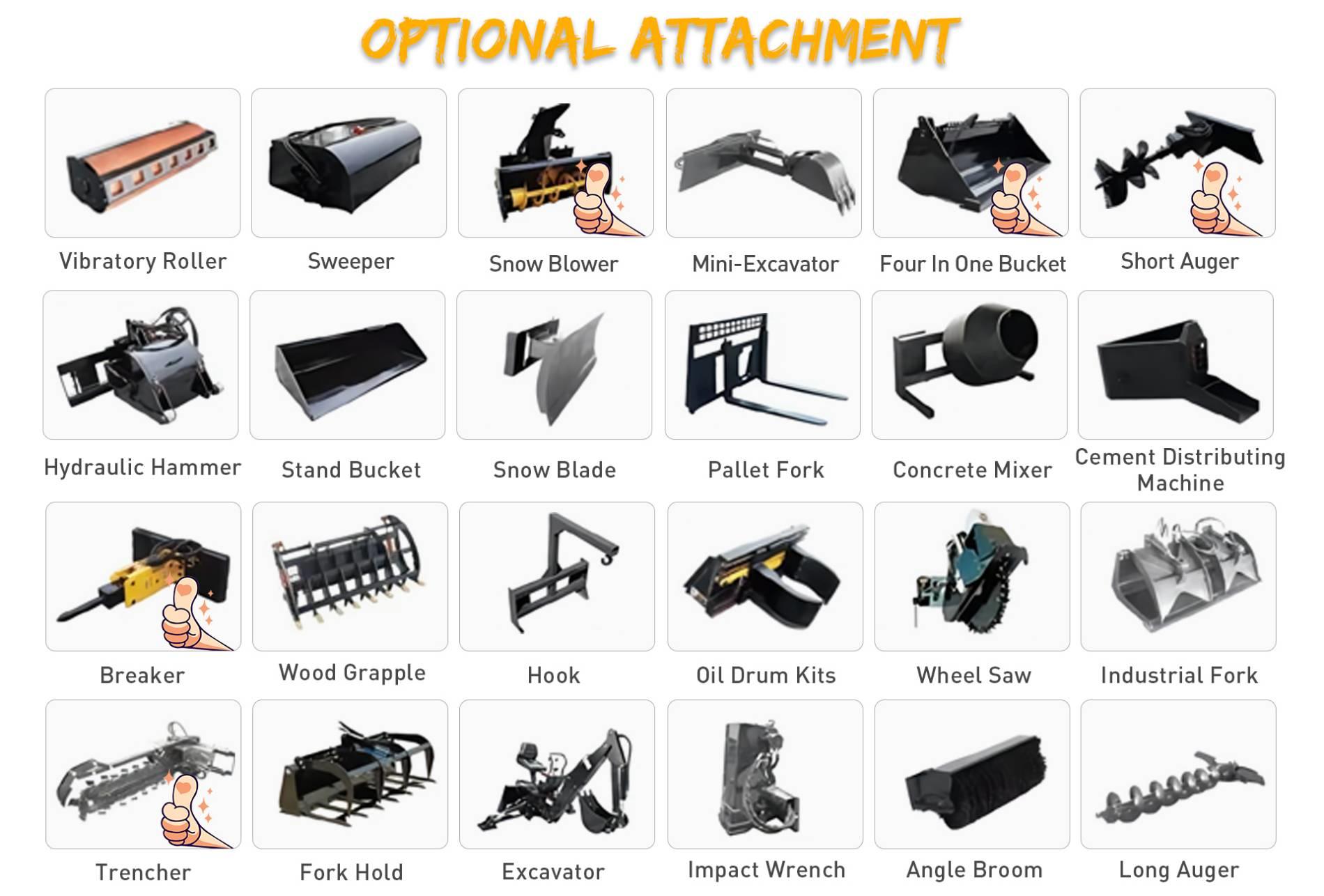

Skid Steer Loader Attachments
Here you can see common skid steer loader attachments configured for different working conditions, designed to expand functional applications and help you better understand the machine’s multi-purpose capabilities.

Skid Steer Loader Review


Frequently Asked Questions about Skid Steer Loaders
What is a skid steer loader used for?
A skid steer loader is a compact multi-purpose machine widely used in construction, agriculture, landscaping, and municipal work. It can handle tasks such as loading, digging, material handling, and cleaning, especially in tight or confined job sites.
What attachments can be used with a skid steer loader?
A skid steer loader supports a wide range of quick-change attachments, including buckets, pallet forks, augers, hydraulic breakers, trenchers, and sweepers, allowing it to adapt to different job requirements and improve overall working efficiency.
