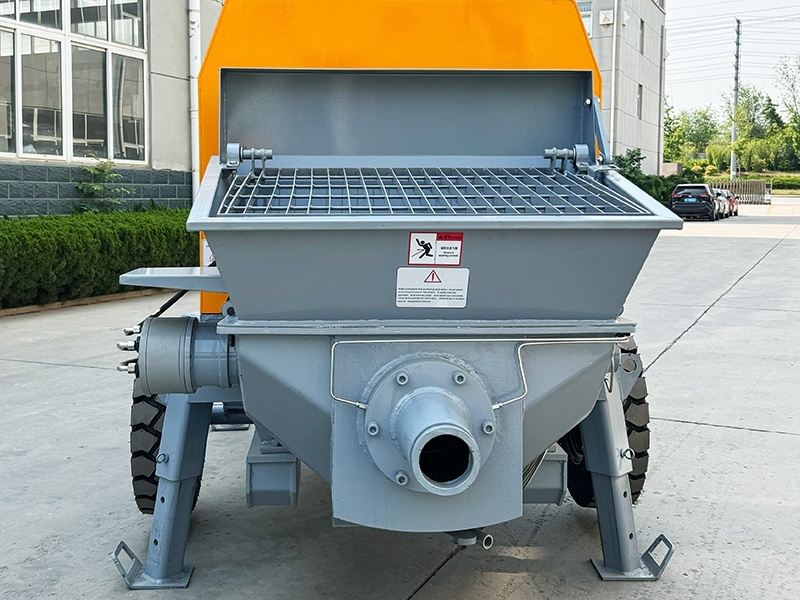

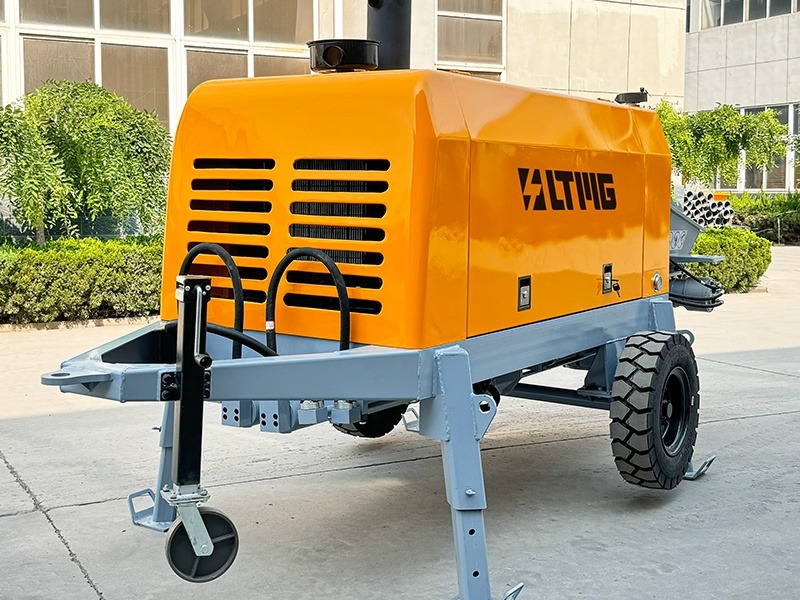

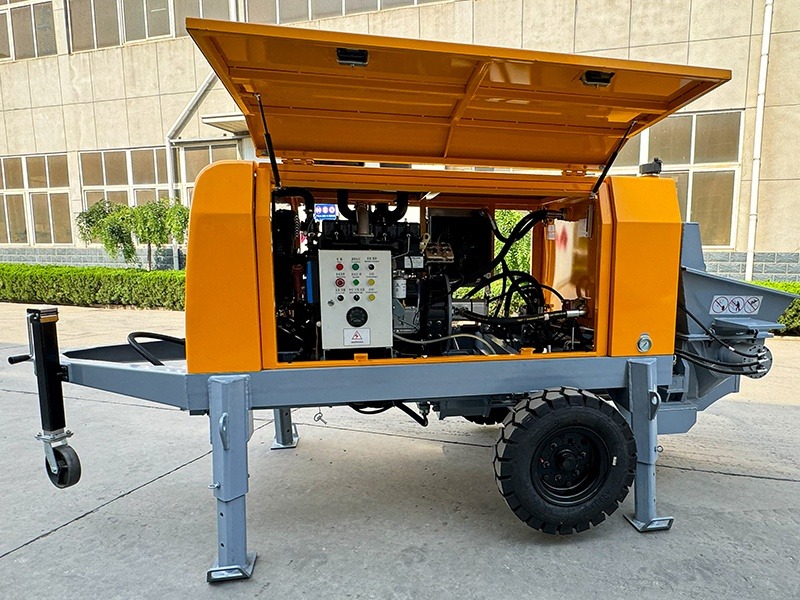

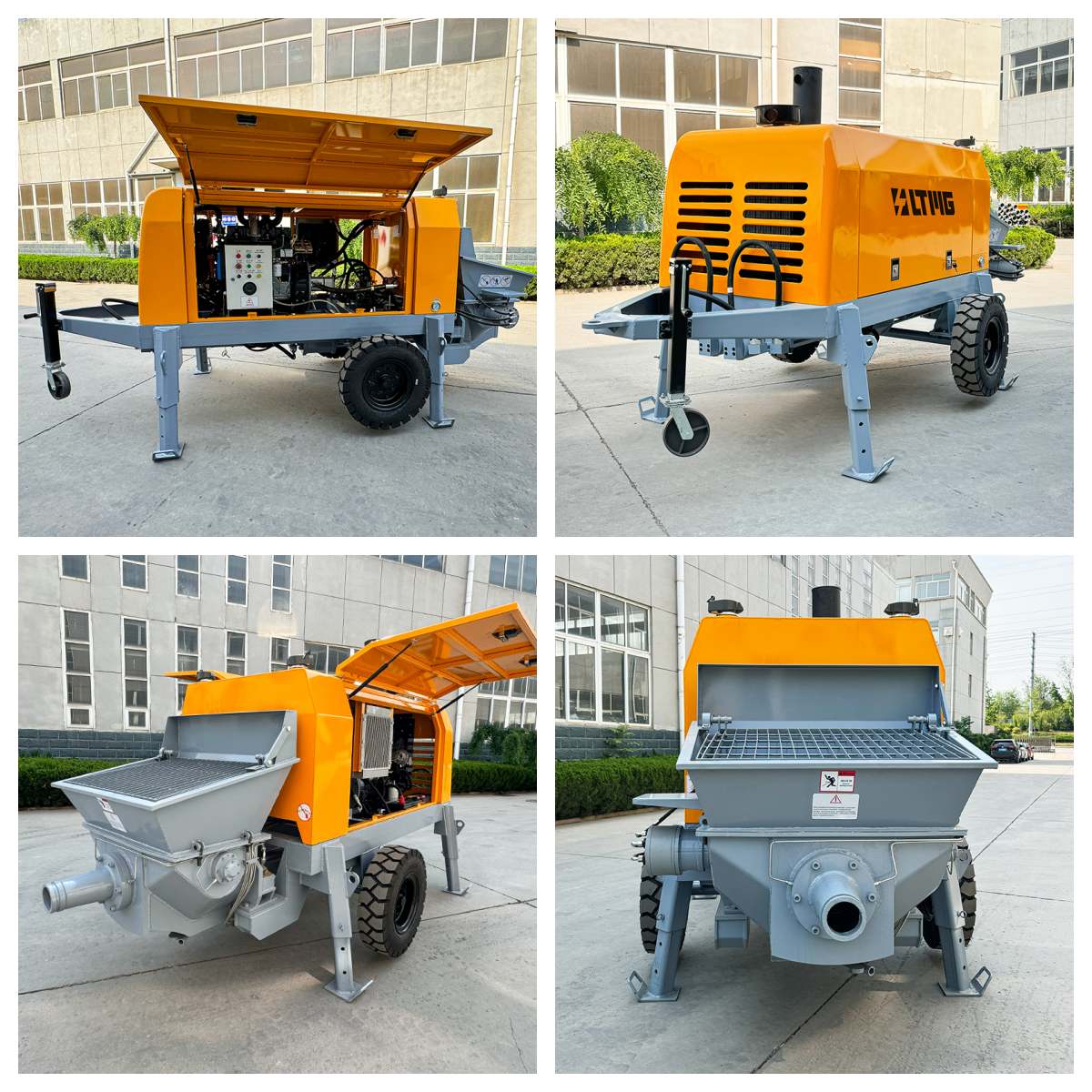

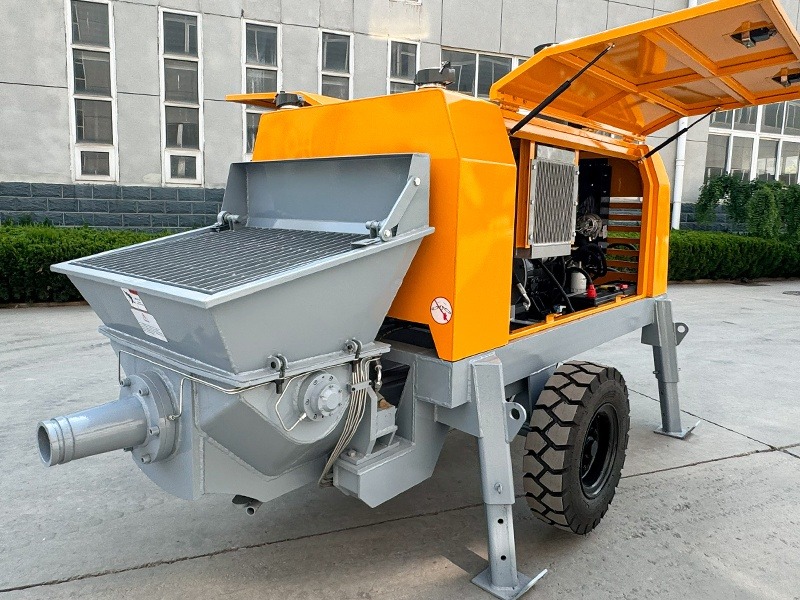

The HBT30-10-48 concrete pump delivers up to 30 m³/h with a 350 m horizontal conveying range. Featuring intelligent electronic control, wireless remote operation, high-low pressure switching, a wear-resistant S-valve, and air-cooled hydraulics, it provides efficient pumping for high-rise, infrastructure, and long-distance construction.
नमूना :
HBT30-10-48Maximum theoretical concrete output (L./H.) :
30/16 m3/hMaximum concrete pumping pressure (H. /L.) :
8/4 MPa
The Features Of The Concrete Pump
1. Intelligent Electronic Control System: Automatically adjusts the diesel engine speed to ensure smooth operation while improving fuel efficiency.
2. Advanced S-Tube Valve Structure: Uses an S-tube valve with a floating seal that automatically compensates for gap wear, delivering excellent sealing performance.
3. Wear-Resistant Key Components: The spectacle plate and cutting ring are made from high-hardness, wear-resistant alloy materials, helping extend their service life.
4. High Outlet Pressure: Provides strong outlet pressure to meet the conveying needs of high-rise buildings and long-distance construction projects.
5. Air-Cooled Hydraulic Oil Cooling System: Adopts an advanced air-cooling heat dissipation system, eliminating the need for a water source and making operation easier.
The Specification Of The Concrete Pump
| Parameter | Unit | HBT30-10-48 |
| Maximum theoretical concrete output (L./H.) | m3/h | 30/16 |
| Maximum concrete pumping pressure (H. /L.) | MPa | 8/4 |
| Concrete valve type | S Valve | |
| Concrete cylinder diameter × stroke length | mm | Ф140×1000 |
| Hopper capacity × hopper height | L×mm | 400×1100 |
| Maximum aggregate diameter | mm | Pebbles :35 |
| Gravel : 30 | ||
| Maximum delivering distance (vertical / horizontal) | m | 120/350 |
| Outlet inner diameter | mm | Ф100 |
| Delivering pipe inner diameter | mm | Ф100 |
| Lubrication system | Manual greaser | |
| High-low pressure conversion | Yes | |
| Remote control | Wireless | |
| Diesel engine | 4102ZD | |
| Rated power | kW | 48 |
| Rated speed | r/min | 1800 |
| Rated fuel consumption | L/h | 8.3 |
| Hydraulic system | Open loop | |
| Pumping system pressure | MPa | 16 |
| Stirring system pressure | MPa | 12 |
| Hydraulic tank capacity | L | 180 |
| Length×width×height | mm | 4850×1670×1680 |
| Main weight | kg | 3100 |
| Total weight | kg | 4500 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
