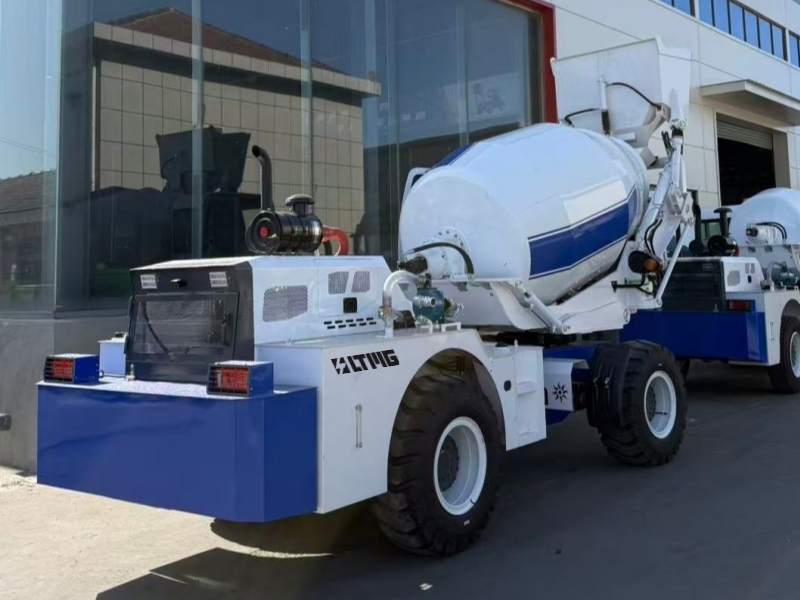

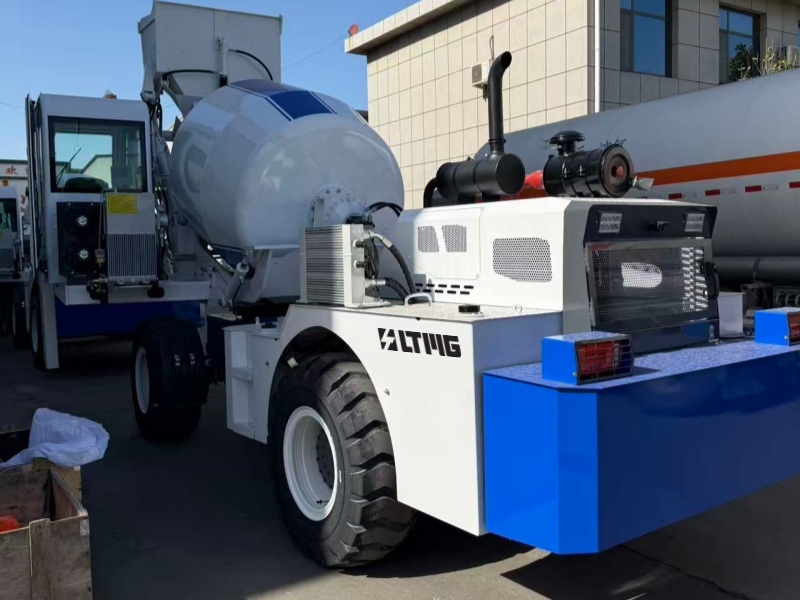

The 2.6m³ Self-Loading Concrete Mixer Truck integrates loading, mixing, and discharging for efficient on-site concrete production. With powerful performance, flexible operation, convenient water supply, and enhanced operator comfort, it is ideal for construction sites, road projects, rural infrastructure, and other demanding applications.
नमूना :
LTM26वज़न :
8000 KGलंबाई चौड़ाई ऊंचाई :
6700 × 2600 × 4220 (Lifting arm) mm
The Features Of The Self Loading Concrete Mixer Truck
1. Powerful Performance & Reliable Operation: Equipped with a powerful turbocharged diesel engine and heavy-duty drivetrain, the mixer delivers strong performance, excellent traction, and reliable operation for demanding construction environments.
2. Efficient Self-Loading & Mixing System: The integrated loading, mixing, and discharging system streamlines the entire concrete production process, reducing manual handling and improving overall job-site efficiency.
3. Flexible Rotation & Convenient Discharge: The mixing drum rotates synchronously with the cab, providing greater flexibility during concrete discharge and making it easier to handle concrete placement in different working conditions.
4. Comfortable Operation & Enhanced Visibility: A luxury suspension seat, digital dashboard, front and rear cameras, and an integrated display create a comfortable and user-friendly operating environment while improving visibility and operational safety.
Concrete Mixer Truck Product Features
| Parameter | Unit | LTM26 |
| Vehicle Size (L × W × H) | mm | 6700 × 2600 × 4220 (Lifting arm); 7900 × 2600 × 3070 (Drop arm) |
| Wheelbase | mm | 2380 |
| Track Width | mm | 1530 |
| Overall Weight | kg | 8000 |
| Engine | / | YCD4M22T-105 |
| Power | kW | 77.3 |
| Gearbox | / | 280 integrated |
| Drive Axle | / | 2.0T wheel side reduction axle |
| Tyre | / | 16/70-20 |
| Bucket Capacity | m³ | 0.65 |
| Stirring Capacity | m³ | 2.6 |
| Reduction Ratio | / | 1:28 |
| Drum Rotation Speed | rpm | ≥15 |
| Reducer | / | Made in China |
| Running Speed | km/h | 35 |
| Shaft Number Traction Type | / | 4×4 |
| Water Tank Capacity | L | 910 |
| Diesel Tank Capacity | L | 180 |
| Hydraulic Tank Capacity | L | 150+26 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
Advantages of LTMG Products
FAQ
A: A self-loading concrete mixer is a multifunctional machine that integrates material loading, weighing, mixing, transportation, and concrete discharge into one unit. Unlike a conventional concrete mixer truck, it can load aggregates and other materials independently, reducing the need for separate loading equipment and, in many applications, eliminating the need for a fixed batching plant. This makes it particularly suitable for remote and small-to-medium construction projects.
Q: How Do I Select the Right Self-Loading Concrete Mixer Capacity for My Project?
A: The right mixer capacity should be selected according to the required concrete output, project size, site conditions, road accessibility, and pouring schedule. Smaller self-loading concrete mixers are generally more suitable for narrow, remote, or low-output construction sites, while larger models are better suited to projects requiring higher concrete production and more continuous operation. The actual working conditions should be evaluated before selecting the mixer capacity.
Q: Is the Drum Capacity of a Self-Loading Concrete Mixer the Same as Its Actual Concrete Output?
A: Not necessarily. Rated drum capacity and actual concrete output per batch are two different specifications. The actual usable concrete yield depends on the mixer design, concrete mix ratio, material density, and operating conditions. When comparing different self-loading concrete mixer models, it is important to confirm the actual concrete output per batch rather than relying only on the stated drum capacity.
Q: Can a Self-Loading Concrete Mixer Operate Without a Concrete Batching Plant?
A: Yes. A self-loading concrete mixer can independently load aggregates, add water and cement, mix the concrete, transport it to the required location, and discharge it without relying on a fixed batching plant. This integrated design can reduce the need for additional equipment and is especially useful for remote construction sites, infrastructure projects, and locations where installing a stationary batching plant is impractical.
