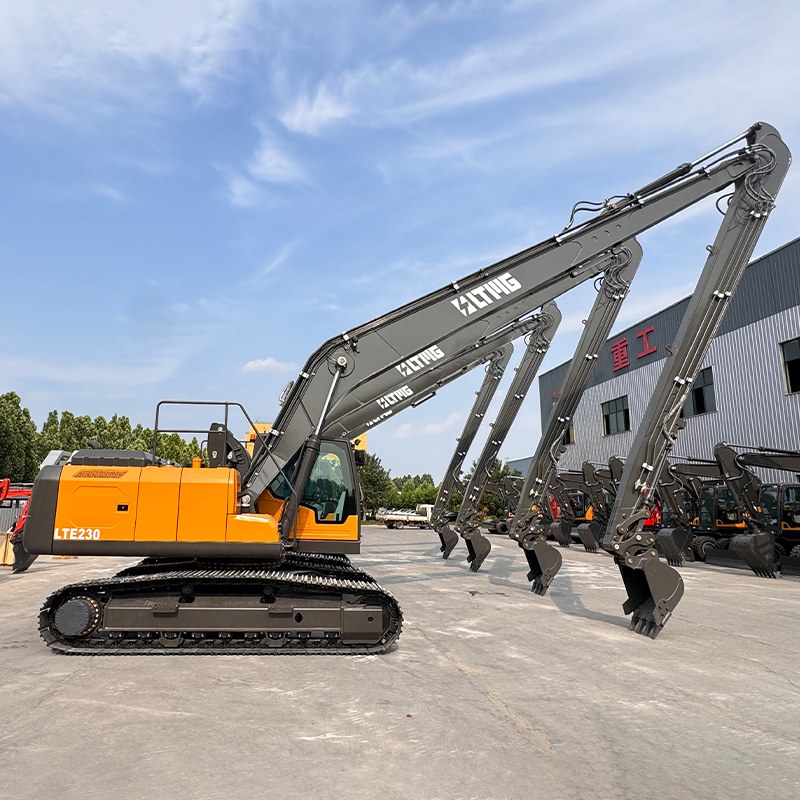

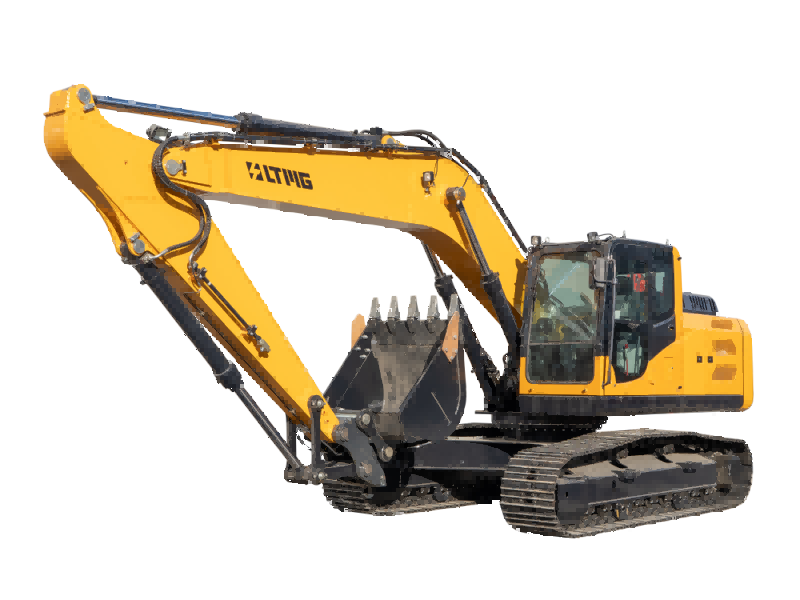

Heavy duty 23 ton Excavator Hydraulic Digger for Construction
Heavy duty 23 ton Excavator Hydraulic Digger for Construction
Heavy duty 23 ton Excavator Hydraulic Digger for Construction
Heavy duty 23 ton Excavator Hydraulic Digger for Construction

Heavy duty 23 ton Excavator Hydraulic Digger for Construction

This 23-ton excavator is powered by a 124kW Cummins QSB7 engine, delivering robust performance while maintaining full EPA emission compliance. Equipped with a 1.1 $m^3$ bucket, the machine utilizes advanced double-pump combined flow technology. This system optimizes hydraulic distribution to the boom, arm, and bucket cylinders, significantly increasing cycle speeds and overall operational efficiency.

  • नमूना :

    LTE230
  • ऑपरेटिंग वेट :

    23000kg
  • बाल्टी क्षमता :

    1.1m³
  • ओडीएम / OEM :

    SUPPORT
  • साझा :
  • Youtube
  • Facebook
  • Instagram
  • linkedin
  • twitter

Excavator manufacturer

    • More Power, Less Hassle: Get the job done with a beast of a diesel engine that stays on the clock longer while keeping your service bills low.
    • Built to Outlast: Stay grounded on any terrain. Our wide-track system and smart tensioning keep you moving smoothly while reducing costly wear and tear.
    • Work in Total Comfort: Upgrade to a "first-class" workspace. Our premium damping system eliminates bumps, so you finish the day feeling as fresh as when you started.
    • Smooth, Instant Control: Feel the precision of advanced hydraulics that respond the moment you move the stick—no lag, just pure performance.
    • Tough Enough for Any Ground: From jagged sandstone to heavy clay, our hardened steel edges bite through the tough stuff without wearing down.



    • The Heavyweight Champion: Massive pressure-carrying capacity wrapped in a rugged frame that won't flinch under the heaviest loads.

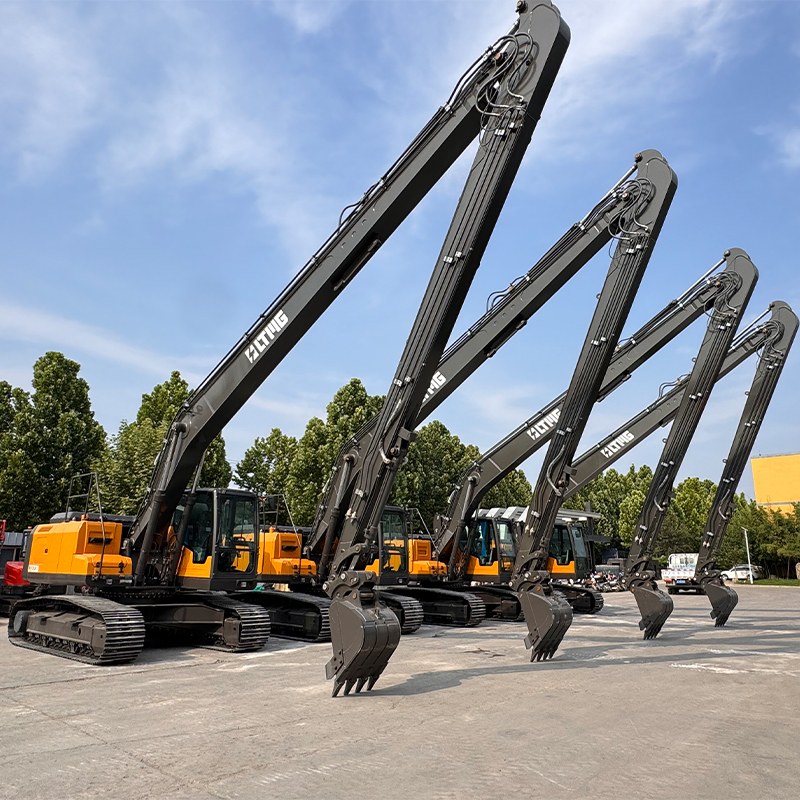

  • 23 ton crawler excavator for sale
  • heavy duty crawler excavator for sale
  • crawler excavator supplier





Customer Feedback Video



23 Ton Excavator Technical Parameters

Performance Parameters Unit LTE230
Operating Weight Kg 23000
Engine Model   Cummins QSB7
Rated Power Kw 124KW/2050rpm
Bucket Capacity 1.1
Swing Speed rpm 0-13
Traveling Speed km/h 3.8-4.2
Gradeability ° 30°

Hydraulic System
Hydraulic system working pressure Mpa 34
Hydraulic Pump   PNM
Hydraulic Valve   Parker
Swing Motor   Strong(Sunjin)
Traveling Motor   Doosan

Operating Range
Max. Digging Radius mm 9936
Max. Digging Depth mm 6550
Max. Digging Height mm 9680
Max. Dumping Height mm 6730
Distance from swing center to tail mm 2880

Overall Dimensions
Overall Length mm 9565
Overall Width mm 2990
Overall Height mm 3000
Track Width mm 600
Track Height mm 950

With technological innovation, our product configuration and parameters will continue to change without notice; If there is any doubt, the specific confirmation of our international trade sales shall prevail.



Optional Attachments & Shipping Plan

LTMG provides customers with various optional attachments, including but not limited to buckets, rippers, rakers, auger drills, and grippers, which are meticulously designed to cater to diverse and distinct requirements across various working sites.

Excavator attachments

excavator package show



FAQ about 23 Ton Excavator

1. What payment terms can we accept?

T/T; L/C; D/P



2. What Certificates do we have?
All products meet the ISO9001 Quality System and have acquired a CE certificate. EPA approval will be available if needed.



3. How about our delivery time?

It usually will take 30 days-45 days after receiving your deposit.



4. Can we provide OEM service?

LTMG Industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.



5. What is LTMG's policy for responding to customer questions and concerns?

LTMG responds to any questions within 24 hours and provides free wearing parts during the warranty period. If you are not satisfied with any details of our company's sales and service, please feel free to contact us and we will do our best to solve your problems in time.
